Product Introduction

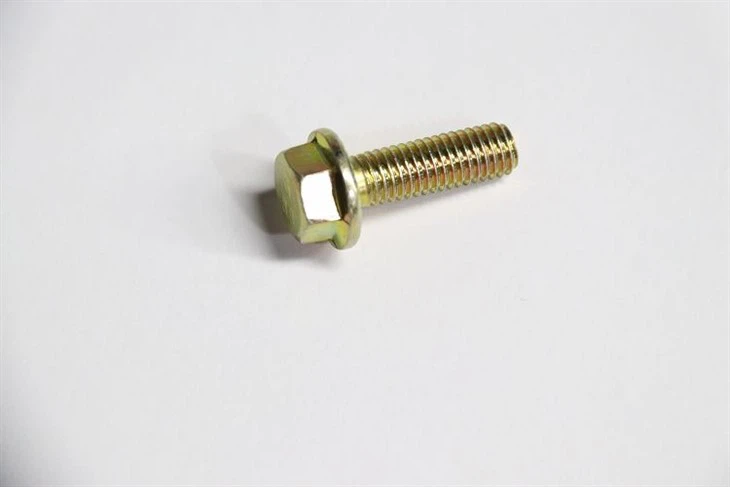

Flange Bolt Din 6921 Cl 8.8 conforms to DIN 6921 standard, available in materials like carbon steel, alloy steel, and stainless steel. It covers a wide range of sizes from M4 to M36 for various applications. Mechanically, it meets the 8.8 grade, ensuring high strength and good toughness. The bolt offers diverse surface treatments including plain, black oxide, and zinc plated to suit different environments and corrosion resistance needs.
Product Advantages
High-Strength Material Ensures Load-Bearing Capacity
Flange Bolt Din 6921 Cl 8.8 adopts carbon steel material and achieves the strength standard of Class 8.8 after heat treatment. It boasts a tensile strength of 800MPa and a yield strength of 640MPa. This high-strength characteristic enables it to withstand significant static and dynamic loads, making it suitable for high-strength connection scenarios such as heavy machinery and building structures. Compared with ordinary bolts, its load-bearing capacity is increased by approximately 30%, significantly reducing the risk of fracture due to excessive loads.
Integrated Flange Design Enhances Stability
Flange Bolt Din 6921 Cl 8.8 features an integrated flange design with a flange diameter larger than that of ordinary washers, providing more even pressure distribution and reducing stress concentration on the surface of connected parts. This design not only improves connection stability but also prevents bolt loosening. Under the same vibration conditions, its loosening probability is more than 50% lower than that of ordinary bolts.
Surface Treatment Enhances Anti-Corrosion Performance
Flange Bolt Din 6921 Cl 8.8 undergoes phosphating or galvanizing surface treatment to form a dense protective film, effectively isolating air and moisture to prevent rust. This anti-corrosion performance makes it suitable for humid, rainy, or coastal environments.
Precision Manufacturing Ensures Installation Efficiency
Flange Bolt Din 6921 Cl 8.8 is manufactured using precision cold heading technology, with thread tolerance controlled within ±0.05mm, ensuring perfect matching with nuts. This high-precision design not only reduces friction during installation but also avoids installation difficulties caused by dimensional deviations.
Outstanding High-Temperature and Fatigue Resistance
Flange Bolt Din 6921 Cl 8.8 undergoes special heat treatment, maintaining stable mechanical properties within a temperature range of -20°C to 150°C. Meanwhile, its fatigue resistance is excellent, withstanding over 100,000 cycles in cyclic load testing without failure, which is about 40% higher than the fatigue life of ordinary bolts. This characteristic makes it suitable for industrial environments with high temperatures or frequent vibrations.
Product Parameters
Legend:
d2 - the inner diameter of the ring
b - length of the thread (at least)
l - length of bolt
d - the nominal diameter of the thread
k - head height
s - size hex head turnkey
Makings:
Steel: 8.8, 10.9
Stainless: carbon steel
Plastic: -
Non Ferrous: -
Thread: 6g
FLANGE BOLT DIN 6921 CL 8.8 :dimensions in mm
|
Tdread |
M5 |
M6 |
M8 |
M10 |
M12 |
(M14) |
M16 |
M20 |
|
|
- |
- |
M8 x 1 |
M10 x 1,25 |
M12 x 1,5 |
(M14x1,5) |
M16 x 1,5 |
M20 x 1,5 |
||
|
- |
- |
- |
(M10 x 1) |
(M10 x 1,25) |
- |
- |
- |
||
|
P |
0,8 |
1 |
1,25 |
1,5 |
1,75 |
2 |
2 |
2,5 |
|
|
C |
Min. |
1 |
1,1 |
1,2 |
1,5 |
1,8 |
2,1 |
2,4 |
3 |
|
da |
Min. |
5 |
6 |
8 |
10 |
12 |
14 |
16 |
20 |
|
Max. |
5,75 |
6,75 |
8,75 |
10,8 |
13 |
15,1 |
17,3 |
21,6 |
|
|
dc |
Max. |
11,8 |
14,2 |
17,9 |
21,8 |
26 |
29,9 |
34,5 |
42,8 |
|
dw |
Min. |
9,8 |
12,2 |
15,8 |
19,6 |
23,8 |
27,6 |
31,9 |
39,9 |
|
e |
Min. |
8,79 |
11,05 |
14,38 |
16,64 |
20,03 |
23,36 |
26,75 |
32,95 |
|
h |
Max. |
6,2 |
7,3 |
9,4 |
11,4 |
13,8 |
15,9 |
18,3 |
22,4 |
|
m |
Min. |
4,7 |
5,7 |
7,6 |
9,6 |
11,6 |
13,3 |
15,3 |
18,9 |
|
m´ |
Min. |
2,2 |
3,1 |
4,5 |
5,5 |
6,7 |
7,8 |
9 |
11,1 |
|
s |
Nominal size = max. |
8 |
10 |
13 |
15 |
18 |
21 |
24 |
30 |
|
Min. |
7,78 |
9,78 |
12,73 |
14,73 |
17,73 |
20,67 |
23,67 |
29,16 |
|
|
r |
Max. |
0,3 |
0,36 |
0,48 |
0,6 |
0,72 |
0,88 |
0,96 |
1,2 |
Tab 2.
|
Thread d |
M5 |
M6 |
M8 |
M10 |
M12 |
M14 |
M16 |
M 20 |
||||||||||
|
- |
- |
M8 x 1 |
M10 x 1,25 |
M12 x 1,5 |
M14 x 1,5 |
M16 x 1,5 |
M20 x 1,5 |
|||||||||||
|
- |
- |
- |
(M10 x 1) |
(M12 x 1,25) |
- |
- |
- |
|||||||||||
|
l |
Shank lengtds |
|||||||||||||||||
|
nominal dimension |
min. |
max. |
ls min. |
lg max |
ls min. |
lg max |
ls min. |
lg max |
ls min. |
lg max |
ls min. |
lg max |
ls min. |
lg max |
ls min. |
lg max |
ls min. |
lg max |
|
10 |
9,71 |
10,29 |
- |
2,4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
11,65 |
12,35 |
- |
2,4 |
- |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
15,65 |
16,35 |
- |
2,4 |
- |
3 |
- |
4 |
|
|
|
|
|
|
|
|
|
|
|
20 |
19,58 |
20,42 |
- |
4 |
- |
3 |
- |
4 |
- |
4,5 |
|
|
|
|
|
|
|
|
|
25 |
24,58 |
25,42 |
5 |
9 |
2 |
7 |
- |
4 |
- |
4,5 |
- |
5,3 |
|
|
|
|
|
|
|
30 |
29,58 |
30,42 |
10 |
14 |
7 |
12 |
- |
8 |
- |
4,5 |
- |
5,3 |
- |
6 |
|
|
|
|
|
35 |
34,5 |
35,5 |
15 |
19 |
12 |
17 |
6,75 |
13 |
- |
9 |
- |
5,3 |
- |
6 |
- |
6 |
|
|
|
40 |
39,5 |
40,5 |
20 |
24 |
17 |
22 |
11,75 |
18 |
6,5 |
14 |
- |
10 |
- |
6 |
- |
6 |
- |
7,5 |
|
45 |
44,5 |
45,5 |
25 |
29 |
22 |
27 |
16,75 |
23 |
11,5 |
19 |
6,25 |
15 |
- |
11 |
- |
6 |
- |
7,5 |
|
50 |
49,5 |
50,5 |
30 |
34 |
27 |
32 |
21,75 |
28 |
16,5 |
24 |
11,25 |
20 |
6 |
16 |
- |
12 |
- |
7,5 |
|
55 |
54,4 |
55,6 |
|
|
32 |
37 |
26,75 |
33 |
21,5 |
29 |
16,25 |
25 |
11 |
21 |
7 |
17 |
- |
9 |
|
60 |
59,4 |
60,6 |
|
|
37 |
42 |
31,75 |
38 |
26,5 |
34 |
21,25 |
30 |
16 |
26 |
12 |
22 |
- |
14 |
|
65 |
64,4 |
65,5 |
|
|
|
|
36,75 |
43 |
31,5 |
39 |
26,25 |
35 |
21 |
31 |
17 |
27 |
6,5 |
19 |
|
70 |
69,4 |
70,6 |
|
|
|
|
41,75 |
48 |
36,5 |
44 |
31,25 |
40 |
26 |
36 |
22 |
32 |
11,5 |
24 |
|
80 |
79,4 |
80,6 |
|
|
|
|
51,75 |
58 |
46,5 |
54 |
41,25 |
50 |
36 |
46 |
32 |
42 |
21,5 |
34 |
|
90 |
89,3 |
90,7 |
|
|
|
|
|
|
56,5 |
64 |
51,25 |
60 |
46 |
56 |
42 |
52 |
31,5 |
44 |
|
100 |
99,3 |
100,7 |
|
|
|
|
|
|
66,5 |
74 |
61,25 |
70 |
56 |
66 |
52 |
62 |
41,5 |
54 |
|
110 |
109,3 |
110,7 |
|
|
|
|
|
|
|
|
71,25 |
80 |
66 |
76 |
62 |
72 |
51,5 |
54 |
|
120 |
119,3 |
120,7 |
|
|
|
|
|
|
|
|
81,25 |
90 |
76 |
86 |
72 |
82 |
61,5 |
74 |
|
130 |
129,2 |
130,8 |
|
|
|
|
|
|
|
|
|
|
80 |
90 |
76 |
86 |
65,5 |
78 |
|
140 |
139,2 |
140,8 |
|
|
|
|
|
|
|
|
|
|
90 |
100 |
86 |
96 |
75,5 |
88 |
|
150 |
149,2 |
150,8 |
|
|
|
|
|
|
|
|
|
|
|
|
96 |
106 |
85,5 |
98 |
|
160 |
159,2 |
160,8 |
|
|
|
|
|
|
|
|
|
|
|
|
106 |
116 |
95,5 |
108 |
|
180 |
179,2 |
180,8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
115,5 |
128 |
|
200 |
199 |
201 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
